specification

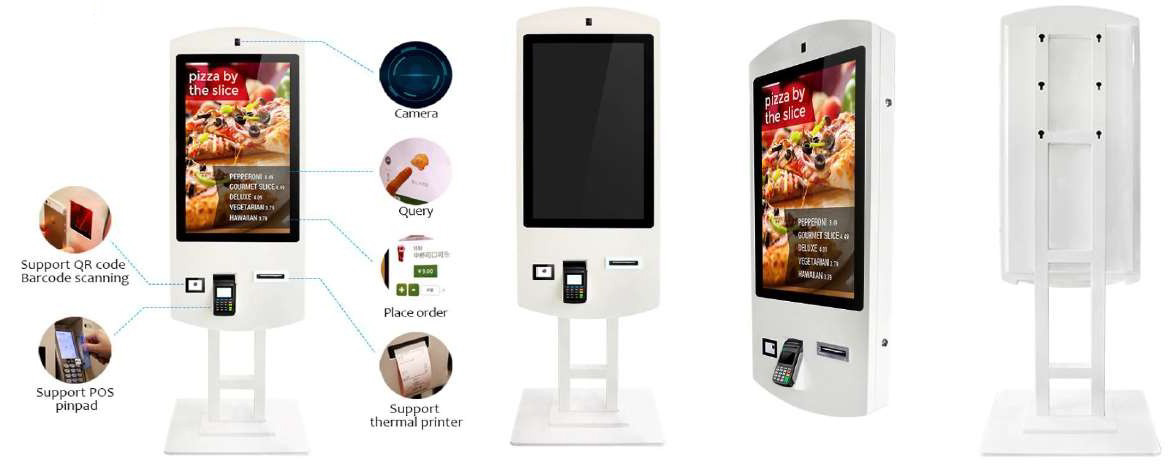

32” Self Service Kiosk

Components

1. LCD

Model No. 32" LCD

Detailed Discription

• Brightness: 350cd/m2
• Contrast: 1400:1
• Response Time:5 ms；Dot pitch: 0.294 mm；
• Active Area: 697.6845mm(W)×392.256mm(H)
• Viewing angle: 178/178
• Panel Life: 50000hours
• Resolution: 1920*1080

2. Touch Screen

Model No. 32" PCAP touch

Detailed Discription

• 10 points
• High Transparence, high precision and durability
• Resolution:4098×4098
• lens transmission:90% ～92%,
• Orientation precision< 2mm（0.080 inch);pure tempered glass;
• Single-point touch Life expectancy more 50,000,000 times

3. PC solutions

Model No. Windows spec. (CAN BE CUSTOMIZED)

Detailed Discription

• CPU：intel i3-3310M/I3-6200U/I5-5287U/ I7-5500U etc
RAM：4GB/8G; Hard Disk:128G SSD/ 500G HDD
• 1RS-232 Ports;2 LTP;4 USB Ports,1 10/100M Net Port
• WIN 7/WIN 10/LINUX supported
• WIFI, LAN supported
• Integrated Net Card, Sound Card、 Graphic Card
power supply 110~240V

Model No. Android system (CAN BE CUSTOMIZED)

Detailed Discription

• CPU: RK3288 quad core
RAM: 2G/ 4G
• ROM:8G/16G/32G
• ANDROID 7.1
• WIFI, bluetooth

4. Thermal printer

80mm(SNBC)

5. QR code reader

1D/2D can be read

6. POS Pinpad

leave pinpad space, USB, RS232 port , inside with socket and RJ45 port

7. Speakers

Left and right bi-channel; amplified output; Multimedia speaker

8. Packing

Bubble Foam, Carton, Wooden Case

9. Certificate Approv

CE,RoHS,CCC,FCC,ISO9001e

10. Warranty

One year
